Metal Pipe Single Head CNC Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FEIDA |
| Model Number | QGJ1-CNC-DW425 |
| Minimum Order Quantity | 1 PC |
| Packaging Details | Non Fumigation Plywood Wooden Box |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T |
| Supply Ability | 5000 PCS/Year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Metal Pipe Single Head CNC Cutting Machine | Power Supply | 380V 50Hz |
|---|---|---|---|
| Power | 2kw | Weight | 650kg |
| Dimensions | 1750 * 1000* 2600mm | Saw Blade | 250-425mm |
| Machining Capacity (mm) | 400mm | Fully Automatic Feeding Length | 1500mm |
| Max. Cutting Wall Thickness | 3mm |
Product Description
Company Profile
--SINCE 2002
--We can customize the most special equipment for each customer We support EM and ODM.
Product Description

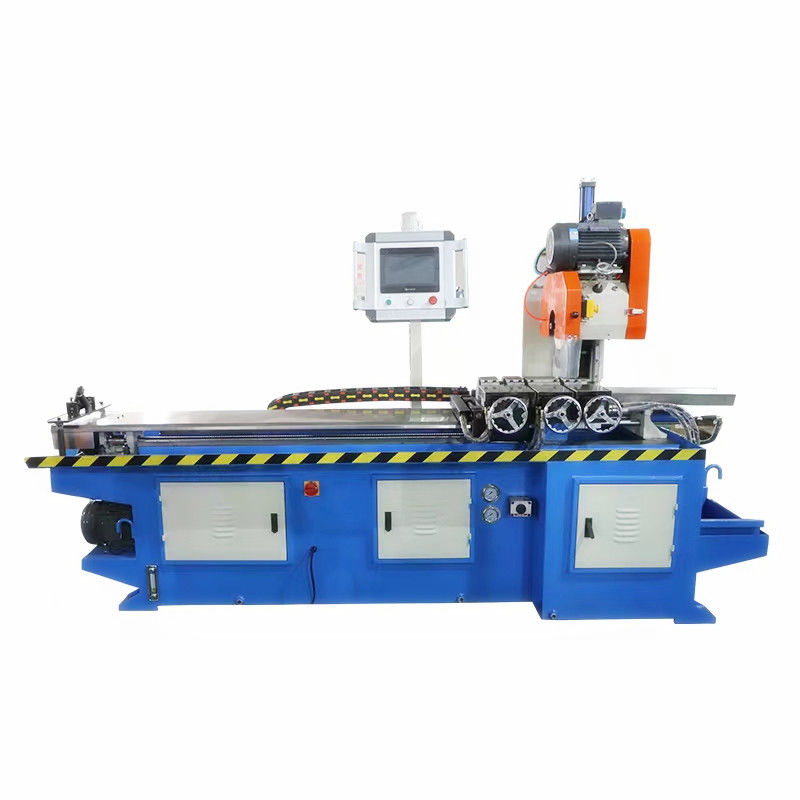

Metal Pipe Single Head CNC Cutting Machine
Performances and Features
--It is a CNC single end pipe cutting machine, which is good at cutting double ends at 45 degrees. It is used in the door frame industry
--Suitable for sawing carbon steel, stainless steel thick walled steel tubes, solid bars and other profiled materials.
-- It can be 90 ° tangent, 90 ° - 45 ° right, and 90 ° - ± 45 ° left.
--PLC control, capable of completing automatic cutting work.
--It supports to cut multiple profiles, stable automatic feed, long life.
--High efficiency mechanism drives to reduce speed and eliminate rebound, suitable for heavy cutting.
-- The specially designed clamp has strong support, reliability and safety.
--The slideway is automatically lubricated with oil, which is stable and has a long service life.
--The machine has firm structure, small vibration and long service life.
--The coolant circulates automatically to ensure smooth section; The saw blade has a long service life.
--Centralized treatment of sawdust, easy to maintain.
--The pipe cutting length is 1500mm, with single end cutting
Friendly reminder: If you do not see the ideal machine in our store (due to time and space constraints, we did not display all the machines on the page), please contact our online sales. We will provide you with a more suitable machine solution!
Detailed Photos
Our Advantages
20 YEARS WORKING EXPERIENCE FOR DEEP PROCESSING WINDOW AND DOOR PROFILES & GLASS
Packaging & Shipping
Non Fumigation Plywood Wooden Box
| The after-sales service of our machines | ||
| No. | Item | Service |
| 1 | Service duration | 7*24 Hours (All Weather Service) |
| 2 | Warranty period | 1 year |
FAQ
Q1: If I make metal pipe, how many basic machines do i need?
A: Double head Cutting Saw ;
Pipe end forming machine;
Automatic circumferential welding machine
Drilling and milling Machine;
Contracting pipe machine;
Bending machine etc.
Q2: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness and working needed.
We will suggest the most suitable professional solution.
Q3: This is my first time using this kind of machine, is it easy to operate?
A: Of course, It is easy to operate.
We will send you the English version user manual and install video which shows how to assembly and use clearly.
Don't worry! We will always be here to help!
Q4: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
But in case you have any problem, we will provide you any support at any time!
B: We can send you free components if your machines are in guarantee time.
C: We can send our engineers to repair your machines.
Q5: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirements, we have researched many other different machines.
Q6: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit. But customized machines should be more than 25 days.
Q7: What services can provide in your company?
A: Two years guarantee
B: Free training to operation and maintenance.
D: Free investment analysis for windows, doors and curtain wall project.
E: Free layout design for windows,doors and curtain wall production lines.
G: Provide technical support including pressure design and calculate for window and curtain wall.
H: Quickly provide supply of spare parts
